Pre-Trip Inspection Checklist for Construction Fleet Managers

‍

Construction fleet managers operate and utilize large expensive as well as complex equipment whose small errors of omission might lead to either expensive failures, delayed projects or even deathly accidents. Pre-trip and post-trip checks on a daily basis to detect wear, fluid leaks, brake problems, the malfunction of hydraulics, or unsecured attachment is necessary to prevent their further development.

There is also a risk of fines, regulatory penalty, and lifespan of fleets since skipping of the inspections causes additional downtime. An example is optimization of inspection, which can result in 30-45% reduction in cost of maintenance and 15-20% increases in fleet availability.

This guide is an inclusive, fact-driven strategy, which includes checklists that can be implemented, environmental and seasonal factors, operator preparedness, and technology integration.

‍

What a Pre-Trip Inspection Checklist Is?

Basically, the Pre-Trip Inspection Checklist is a standardized tool that operators can turn to check the heavy equipment before and after work. It is designed to detect possible mechanical, safety or operational problems earlier, avoid accidents, limit downtime, and ensure the equipment is working well.

• Pre-Trip: Prepared prior to commencing the equipment; aims at observing the presence of harmful conditions such as leaking fluids, brakes that are suspect, bad fittings, or out-of-adjustment hand at the controls.

• Post-Trip: Post operational; determines any new wear, damage, or problems incurred in the use and secures equipment before use by the next shift.

Essentially, it is a structured safety and maintenance device that ensures that construction fleets are reliable, compliant as well as efficient.

Traditional vs. Modern Pre-Trip Inspection Checklists

‍

Why Inspections Matter

Failure to perform pre-trip and post-trip inspection which may result in disastrous failures, expensive maintenance works as well as high safety risks. Equipment failure is associated with unplanned downtime, costing construction fleets between an average of $448 and $760 a day per vehicle.

Included in these are the hydraulic system failures that can amount to between $2000 and $5000 in repair and loss of productivity and rental machinery. Safety is one of the most important aspects, other than financial. Inspections conducted regularly can help lower the equipment related risks and maintenance costs.

Safety First

• Safer on the road by spotting dangers early e.g. worn brakes, fluid leaks or worn out tires.
• Avoid accidents in the workplace and on the road.
• The Federal Motor Carrier Safety Administration (FMCSA) observes that mechanical issues are a factor in about 2% of crashes of large trucks.
• As an example, a study published in Science has discovered that OSHA inspection resulted in a 9.4% reduction in injury claims and 26% in reduction in the workers compensation expenditure of the inspected companies within four years time.
• For instance, a study published in Science found that OSHA inspections led to a 9.4% decrease in injury claims and a 26% reduction in workers' compensation costs among inspected firms over four years.

Regulatory Compliance

• Road-going equipment and CDL trucks are supposed to be in line with the regulations of the department of transportation/FMCSA.
• Daily inspections have to be conducted by operators and defects in a Driver Vehicle Inspection Report (DVIR) have to be documented.
• According to the reports by the Federal Motor Carrier Safety Administration (FMCSA), around 10% of large vehicle crashes can be attributed to mechanical failures.

Preventive Maintenance and Cost Savings

• Early fault detection eliminates expensive failure and downtimes without prior scheduling.
• Peak fuel efficiency and wear-and-tear minimization.
• More than 40% of occasions of wheel loader downtime are attributed to hydraulic system failures. By making sure these failures are addressed timely the construction companies can save thousands of dollars in repair costs as well as maximizing equipment uptime.
• Effective diesel engine maintenance strategies can eliminate up to 78% of engine-related failures, reduce operating expenses by 45%, and generate annual savings of around $85,000 per unit.
• Periodic maintenance extends the equipment life by an average 10-15%.

Reputation and Professionalism

• Shows safety and operational excellence.
• Defends relationships with the clients, regulators, and insurers.
• Strict inspection fleets have more contracts and smaller insurance payments (Insurance Journal, 2022).

‍

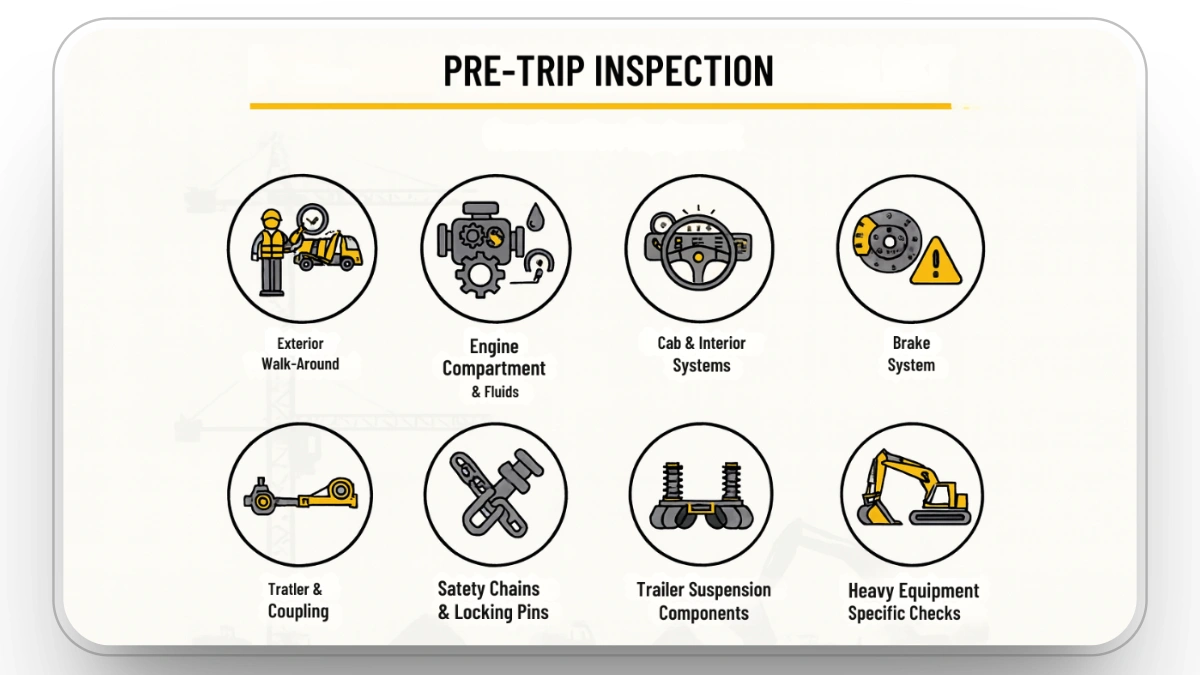

Key Areas of Pre-Trip Inspection

‍

1. Exterior Walk-Around

• Dents, Cracks, Loose Parts: Look at the structure, body panels, and frame to see whether they have any dents, cracks or any other damage. Slight cracks will cause the structure to be weak and result in additional damage and failure.
• Mirrors and Windows: Make sure that there are no loose cracks on the mirrors. The operator has to have full visibility of the windows and clear mirrors.

The cracks or breakages may lead to decreased visibility, especially in terms of safety at the construction site. Make sure that all point mounts of mirrors are tight and in position to give the best view.

• Test Headlights, Brake Lights, Turn Signals, Hazard Lights, Work Lights, and Beacons: Ensure that all lighting systems are switched on and that there are no burnt out bulbs, broken defective lenses or defective lights. This includes:

  • Headlights for nighttime operation.
  • Brake lights and road turn signals to enhance clear communication on the road.
  • Visibility Hazard lights and beacons to be used during an emergency or low-visibility situation.

• Proper Inflation: Check proper tire pressure by means of tire pressure gauge. Also under-inflated tires may burst, become overused, and be less fuel efficient. Blowouts or areas of development of tires can occur due to over inflated tires.

Determine tread depth by variable gauge. Make sure steering tires have at least 4/32" enjoying the tread and other 2/32.

• Tight Lug Nuts: Check lug nuts with the use of a torque wrench. Detachment or stricture of the wheels on loosely attached lug nuts can ensue.
• Cracks or Bent Rims: Look at its rims to distinguish whether they are cracks or bent down, particularly when a vehicle is loaded with heavy weight or even a rocky path.
• Hub Seals: Make sure that the seals on the hub are not bursting with the oil or grease. Bearing failure and considerable damage can occur because of leaking hub seals. Whenever you see the wheels exhibiting rusts or any corrosion, it might be evidence that water had got into the structure, and it was ruining it.

• Oil, Coolant, Fuel, Hydraulic Fluid: Check under the vehicle or equipment whether the fluid leaks can be seen. Loss of fluids may cause great damage to the engine or transmission.

• Pins and Cargo Security: Lock all the attachments (e.g. buckets, blades) and no loose pins, bolts, and fasteners. The cargo must be checked as being secure and balanced.

2. Engine Compartment and Fluids

• Check Levels and Condition: Test the level of engine oil condition. Oil needs to be crystal clear and amber and as such; in the event that the oil looks to be brown and gritty, then the time to change the oil is at hand.

• Check Coolant Levels: Ensure that the level of the coolant remains the correct level and indicates no leakages of the radiator or the hose. Coolant must be bright and clean (typically the color is either green, pink or orange). When it is dirty or oily, then you need to flush the system.
• Inspect Radiator: Check out corrosion, clog and leak. The radiator may be impacted with corrosion that would influence its performance and cause overheating. Overheating might cause the engine damage that is expensive to repair unless in time.

• Check Fluid Level: The level of power steering fluid must be adequate, and the hose and fitting must not have any leaks. When the steering is slow or squeaky in movement, then it might indicate low fluid.

• Check Fluid Level: Dirty or low transmission fluid may result in the difficulty in shifting and the transmission breaking. Test the level and the state of the dipstick. The contents of transmission fluid must be pink. When it is dark brown, or it smells like burnt, change to a new one.
• Inspect Hoses: Check the transmission lines expected to have cracks or leakages, which can result in loss of fluid and subsequently result in overheating of the transmission.

• Check Hydraulic Fluid Levels: Verify the legibility of the reservoir of hydraulic fluid. Reduced hydraulic fluid may cause the equipment to malfunction and become slow with non-responsive controls.
• Inspect Hoses and Connections: Notice that all the hydraulic hoses are without cracks, leaks, or apparent damages. Failure of hydraulic systems may incur a lot of repairs.

• Check Fluid Level: Ensure that the windshield washer fluid has been filled up. Fluid shortage may affect visibility particularly in rainy or dusty weather.
• Inspect Nozzles: Make sure that the nozzles of the washer are not blocked and have the ability to spray fluid through the windshield.

• Inspect for Fraying or Cracking: Check on belts and hose cases and see whether the belts and hose are frayed, broken or worn. These will lead to failures of such components as the alternator, air conditioning, or water pump. Look at the fan belts that are highly susceptible to wear and tear. In case they are not in good condition, change them at once.
• Check Tension: Make sure that the belts are tight. Easy belts may not produce any performance, or cause the producer to wear them unnecessarily.

• Check for Secure Mounting and Operation: Adjust the alternator and starter (they must be installed correctly). The failure of an alternator may cause a dead battery or electrical problems.

• Inspect for Corrosion: Inspect battery terminals whether they are corroded or not. Corrosion may lead to shortening of battery life as well as starting issues.
• Check Battery Charge: Test the battery with a voltmeter. A healthy battery should read around 12.6 volts when the engine is off and 13.7–14.7 volts when running. A failing battery can lead to starting issues and system malfunctions.

• Inspect for Fraying or Glazing: Search the fan belts for frayed edges or glazed points. In the instance of a glazed belt, it can slip and overheat the engine. In case belts are observed to be slack or broken, change them as soon as possible to prevent engine overheating.

• Inspect for Residue: Inspect radiator fins and radiator hoses for whether there is residual or accumulation of this, a potential blockage or leakage of coolant. When you realize that the engine has steam or burns, then it is a case of overheating and this needs early redress.


3. Cab and Interior Systems

• Oil Pressure Gauge: Make sure that it reads in the normal operating range. The decreased pressure of oil may cause damage to the engines.
• Coolant Temperature Gauge: Ensure that the indicator shows normal temperature at the engine. The overheating may cause an engine breakdown.
• Fuel Gauge: Check to ensure that it indicates the correct quantity of fuel to prevent fuel repleteness during the processes.
• Tachometer/Speedometer: Ensure that the RPMs and speed are in safe operating conditions. In case at least some of the gauges fail to work precisely, inquire about the problem as soon as possible, failure of gauges may reflect the hidden ones.

4. Brake System

• Inspect Air Hoses: No cracks, abrasions, or other damages should be found on air hoses. Air hose leaks may severely decrease the braking force, thus losing the ability to remain safe.
• Check Air Chambers: Check the air chambers with regard to corrosion, cracks or loose fittings. The air condition damaged air chamber could result in brake failure because it is part and parcel of the sleeping nature of the air braking mechanism.

5. Trailer and Coupling

• Verify Fifth Wheel / Hitch Connection: Make sure that the fifth wheel (or hitch, as of equipment) is firmly attached to the trailer. Ensure that the locking system has been completely screwed, and the jaw has been allowed to fully clamp the kingpin.
• Test for Secure Locking: Once positioned fifth wheel or hitch is joined, ensure a slight tug on them to ascertain that the wire is tight and not loose. It must not play at all or pull.

• Inspect Air Lines and Connections: Check to see whether the airlines have any leaks, cracks or wear. These are airlines that provide air pressure to brakes and air suspensions. Breaches or pierced air lines may greatly influence the working of brakes as well as the breakdown of the system.

• Test All Trailer Lights: Activate the lights on the trailer and make sure that all the braking lights, turn signals, tail lights, hazard lights, etc. are operational.

• Verify Load Securement: Ensure that the cargo is loaded properly, with straps, chains and other means of securing the cargo in place.

• Inspect Landing Gear for Damage or Wear: Check the landing gear to ensure that it is working, and in full flight. Check the leg operation to ensure that it lifts and drops with ease and snaps back into position.
• Check for Proper Height Adjustment: Make sure that the coupled height of the trailer is compatible with the tractor. In case of a too high or too low height, it may lead to the improper connection.

6. Safety Chains and Locking Pins

• Inspect Safety Chains: Ensure that they have safety chains which are well-fitted to the trailer and tractor. Ensure no apparent damage/ wear.

• Check Locking Pins: Make sure that locking pins execute correctly and are not damaged. These pins retain these vital components which for example are the fifth wheel.

7. Trailer Suspension Components

• Inspect Suspension for Wear: Inspect the suspension of the trailer to ensure that there are no damages or torn bushings, or detachable parts. The purpose of the suspension system is to maintain the stability of the trailer and to absorb the shocks on the way. Inspect cracks, springiness, or broken shock absorbs that may reduce the capacities of the system of suspension.

• Check for Air Suspension Leaks (if applicable): Provided there is air suspension in the trailer, inspect the system against leakages. Suspension elements with air leakages may lead to lack of stability in loads and destruction of tires because of imbalanced loads.


8. Heavy Equipment Specific Checks

• Hydraulic Systems: Make sure that hydraulic fluid level should be proper and without contamination. Test hoses, pumps and connections to see if they have any obvious leaks. Precautions to ensure that hydraulic movements are smooth with no hesitation or jerk.
• Attachments (Booms, Buckets, etc.): Inspect broken welds and damaged pins. Make sure such equipment as booms, buckets are running smoothly and with maximum range.
• Tracks and Rollers: Find marks of wear, fissures or loss of teeth. Ensure proper tension. Ensure alignment and damage free rollers.

‍

Sample Pre-Trip Checklist

‍

Best Practices for Efficient Inspections

• Consistent Routine: Same order every day.
• Focus on Critical Items: Brakes, steering, tires, coupling devices.
• Use Checklists: Paper or digital forms.
• Time Management: Allocate 15–30 minutes per inspection.
• Document Findings: Log defects immediately.
• Spot Checks: Management observes inspections.

‍

Technology and Digital Integration

• Mobile Apps & eDVIR: Digitize inspections, attach photos, store records.
• Automated Alerts: Notify maintenance teams instantly.
• Telematics: Real-time diagnostics reduce unscheduled downtime by 30%.
• Visual Aids: Diagrams for walk-around routes, critical points.
• Analytics: Track trends, maintenance needs, and compliance metrics.


Training and Safety Culture

• Hands-on training for inspection procedures.
• Educate on regulations and company policies.
• Incentivize compliance and reward thorough inspections.
• Gather operator feedback to improve checklists.
• Ongoing training reduces equipment-related accidents by 30%.


‍

Maintenance Scheduling Integration

The power of maintenance scheduling integration lies in its ability to turn inspection data into actionable steps. By using digital systems to track inspections, repairs, and preventive maintenance, fleets can proactively manage equipment health and prevent unexpected breakdowns.

These systems help generate work orders directly from inspection findings, ensuring that issues are addressed before they disrupt operations.

Download Clue’s Free Printable Daily Inspection Template

Need a simple technique of handling your daily equipment inspection? The free customizable PDF template of heavy construction equipment checkups is provided by Clue.

Download the free template here⟶

‍

How Clue Can Enhance Your Pre-Trip Inspection Checklists

Ensuring your equipment is safe and operational before a shift begins is crucial for preventing accidents, reducing downtime, and maintaining compliance.

Clue, an advanced construction equipment management platform, transforms traditional pre-trip inspection processes with innovative features that save time and increase accuracy.

Here’s how Clue enhances your pre-trip inspection checklist:

1. Streamlined Digital Checklists

Clue digitizes your pre-trip inspection process, making it easier than ever for operators to perform thorough checks. The platform offers customizable checklists tailored to different equipment types, allowing for detailed inspections that cover every critical component.

• Mandatory Item Prompts: Clue’s system ensures no item is overlooked by prompting operators to check all key areas, such as brakes, tires, hydraulics, and lights.
• Photo Attachments: Operators can attach photos directly within the checklist to visually document any issues. This adds an extra layer of accountability and clarity.

2. Timely, Automated Inspection Reminders

Clue automates inspection reminders to ensure that equipment is inspected regularly. Fleet managers can schedule inspections based on usage hours, days, or other criteria, ensuring that inspections are completed at appropriate intervals.

• Reduced Human Error: Automated scheduling minimizes the risk of skipped or delayed inspections due to operator oversight.
• Optimal Uptime: Timely inspections allow you to catch issues early and avoid unexpected breakdowns, keeping your equipment in top condition.

3. Instant Compliance and Reporting

Clue simplifies compliance by instantly generating inspection reports in PDF format. These reports can be shared directly with management or saved for future reference.

• Efficient Documentation: Whether for audits, regulatory checks, or internal record-keeping, Clue helps maintain clear, organized inspection logs.
• Audit-Ready Reports: Inspection history is automatically stored, ensuring you are always prepared for DOT or safety inspections.

4. Real-Time Analytics for Proactive Maintenance

Clue doesn’t just track inspections, it also collects data and generates real-time analytics to help you make informed maintenance decisions.

• Trend Analysis: Identify recurring issues that may indicate underlying problems, allowing you to address root causes.
• Proactive Maintenance: With Clue’s data-driven insights, you can schedule preventive maintenance to reduce the risk of costly breakdowns and extend equipment lifespan.

5. Seamless Integration with Maintenance Systems

Clue integrates inspection findings directly into your maintenance management system. Once an inspection is complete, work orders can be automatically generated for any issues identified, creating a seamless workflow from inspection to repair.

• Faster Repairs: Streamlining this process reduces downtime and ensures repairs are handled quickly.
• Optimized Fleet Uptime: By linking inspections with maintenance schedules, you can prevent unexpected equipment failures and keep operations running smoothly.

6. Enhanced Safety and Operator Accountability

Clue’s detailed inspection process not only ensures equipment is operational but also enhances operator safety. With mandatory checks and clear reporting, operators are more accountable for the equipment they use.

• Safer Work Environments: By identifying potential safety hazards early, Clue helps reduce accidents through toolbox talks, onsite.
• Clear Accountability: Detailed, digital records make it easier to track who conducted the inspections and when, ensuring accountability for any missed issues.

‍

Conclusion

Pre-trip inspections are the foundation of a safe, efficient, and compliant construction fleet. These routine checks ensure that equipment is ready for operation, reducing the risk of accidents and equipment failures.

When coupled with seasonal and environmental considerations, these inspections become even more critical in maintaining equipment performance across different operating conditions. Regular checks help identify potential issues early, preventing costly repairs and downtime.

In conclusion, thorough and disciplined inspections with Clue are essential for maintaining safety, reducing costs, and ensuring the long-term reliability of your fleet, crew, and projects. These proactive measures ultimately lead to safer and more productive operations on every job site.

‍

FAQs

1. Why are pre-trip and post-trip inspections so important for construction fleets?

Pre-trip and post-trip inspections help ensure equipment is in safe working condition, reducing the risk of accidents and mechanical failures. They also help identify issues early, preventing costly repairs, reducing downtime, and maintaining regulatory compliance, ultimately ensuring the safety and productivity of the fleet.

2. How can seasonal conditions affect equipment inspections?

Seasonal conditions, like extreme temperatures or muddy terrain, can cause specific wear and tear on equipment. For example, cold weather can cause fluids to freeze, and excessive dirt or mud can impact hydraulic systems. Seasonal checks allow operators to address these unique challenges, ensuring equipment remains in optimal condition year-round.

3. What role does operator readiness play in preventing accidents?

Operator readiness is crucial for safety. Well-rested, trained, and prepared operators are less likely to make errors that could lead to accidents. Ensuring operators wear appropriate PPE, follow safety protocols, and conduct thorough inspections before use significantly reduces the risk of operator-related incidents.

4. How does integrating inspection data with maintenance systems improve fleet management?

Integrating inspection data with maintenance scheduling systems allows for predictive maintenance, identifying issues before they cause breakdowns. It also enables better planning for repairs and part replacements, improving fleet uptime, reducing unplanned downtime, and ensuring a more efficient and cost-effective fleet management system.
